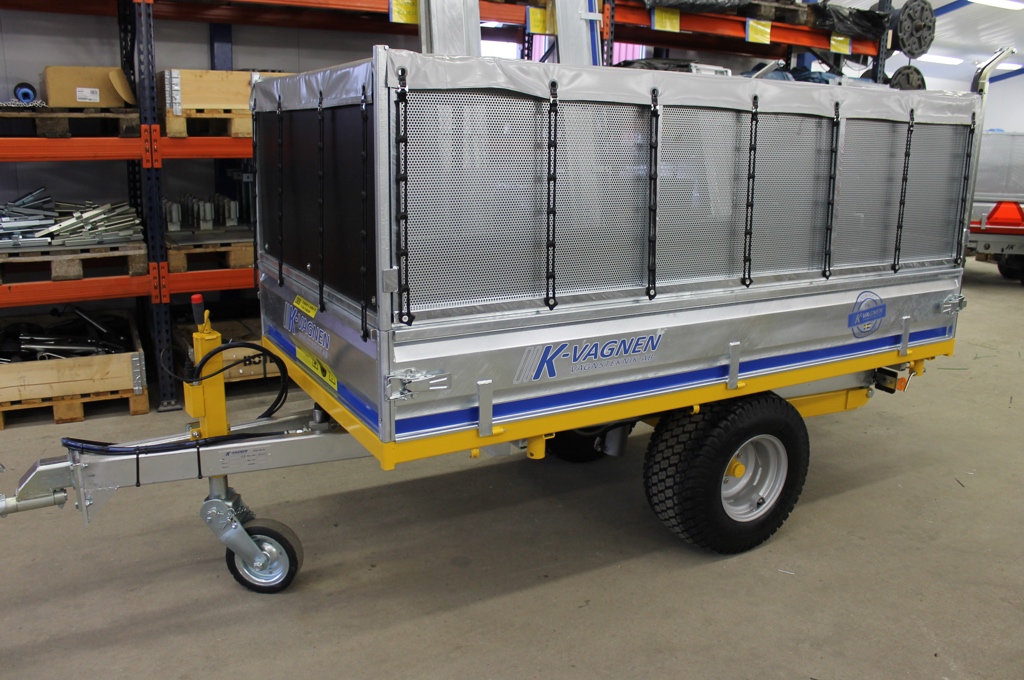

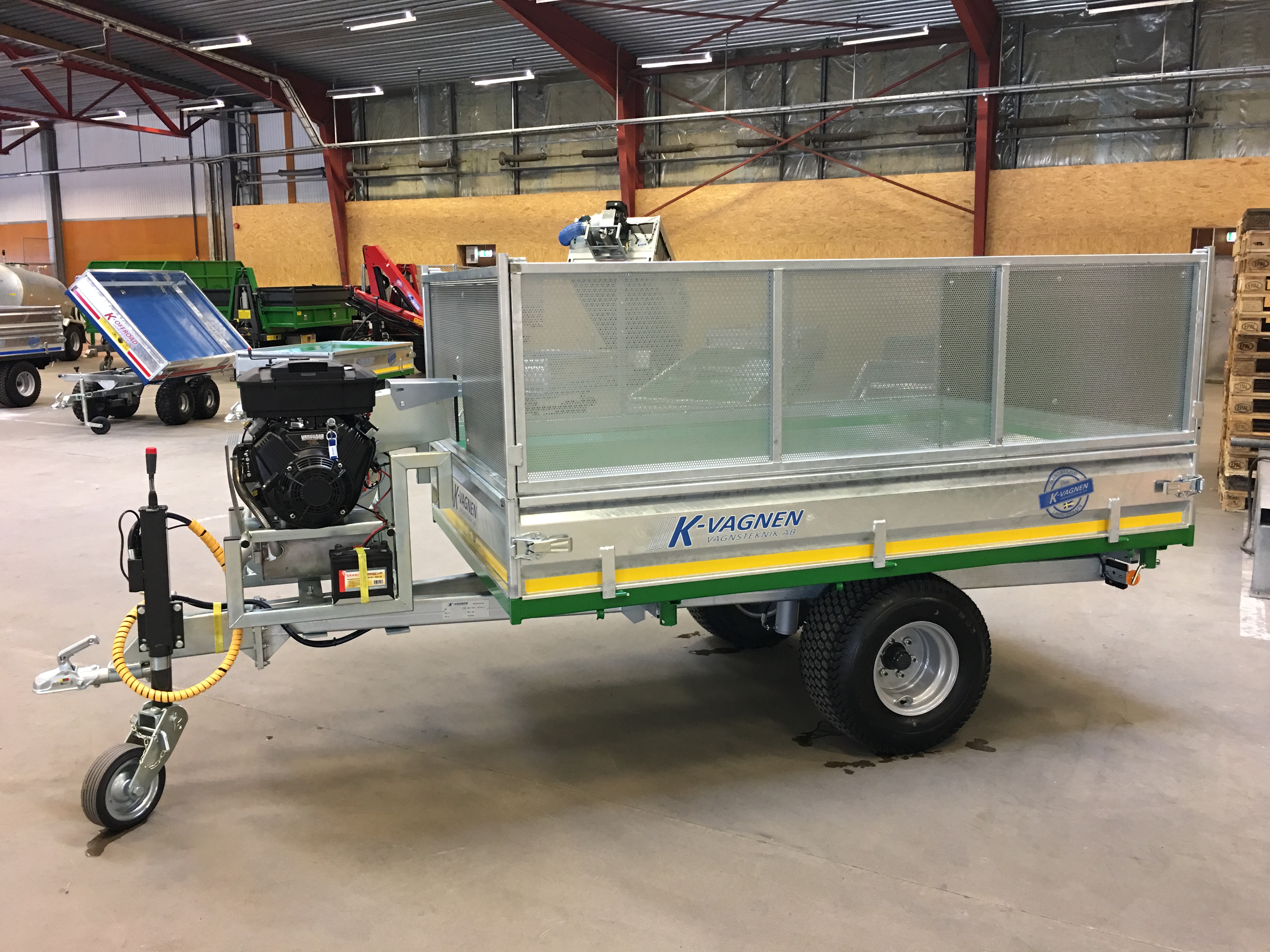

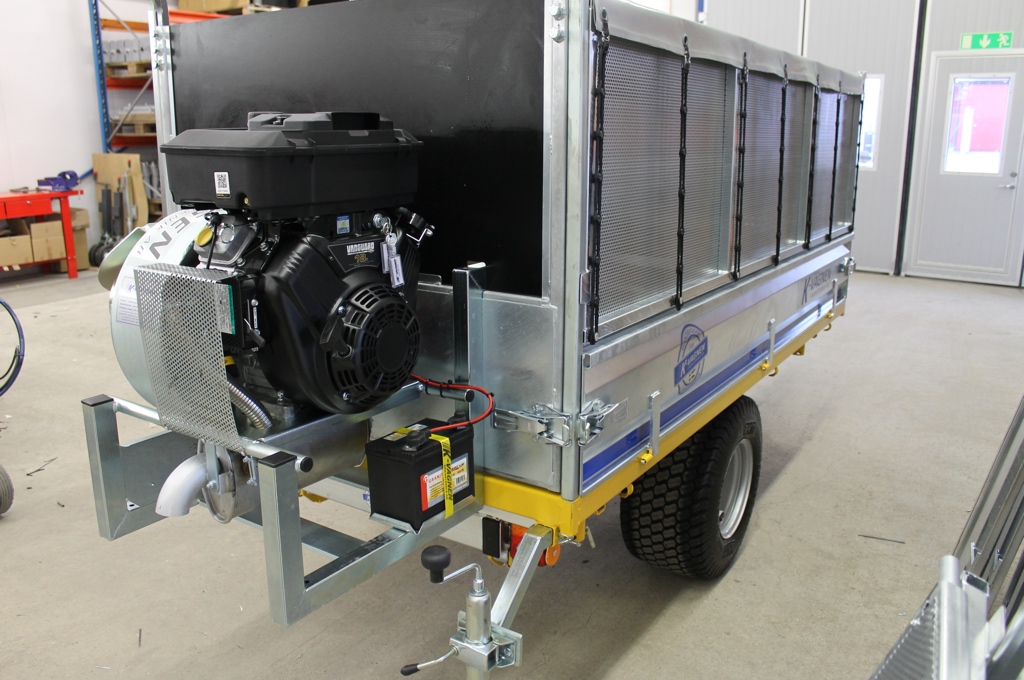

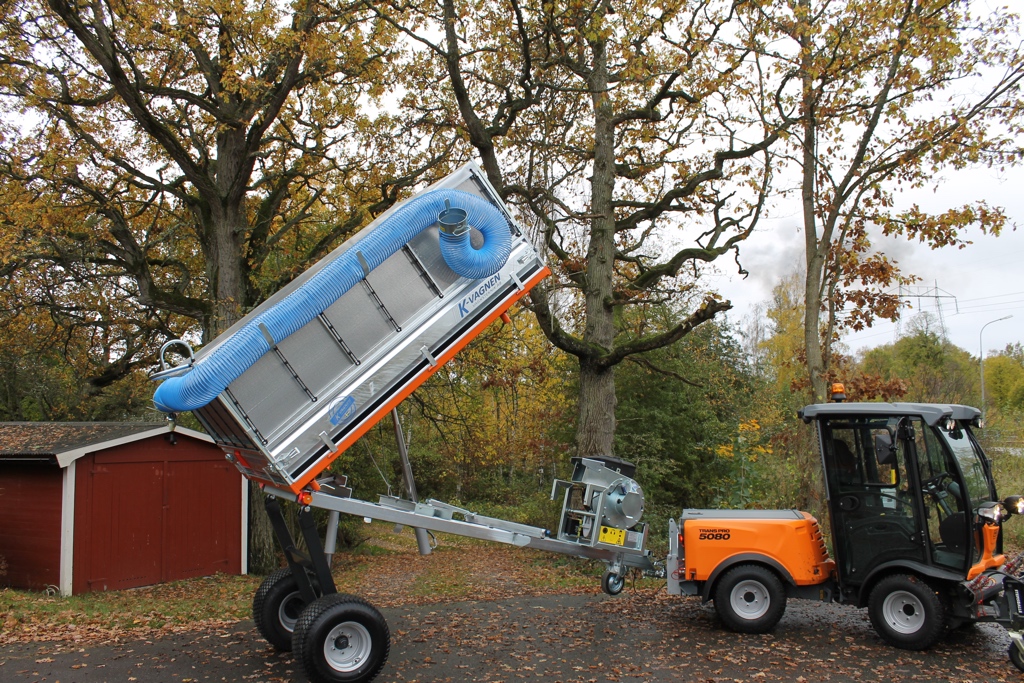

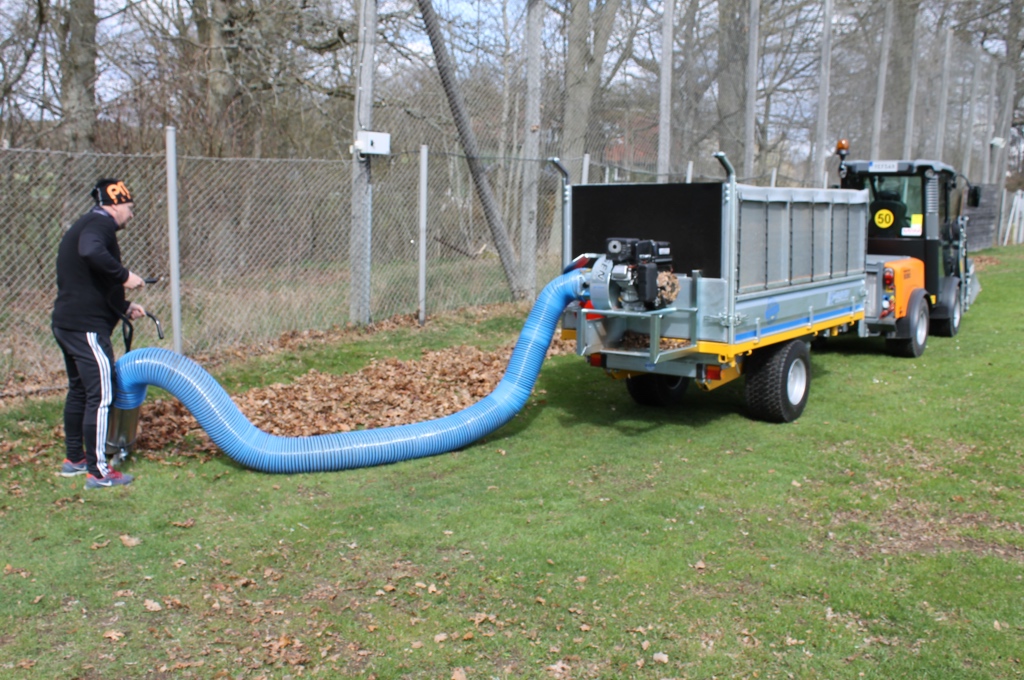

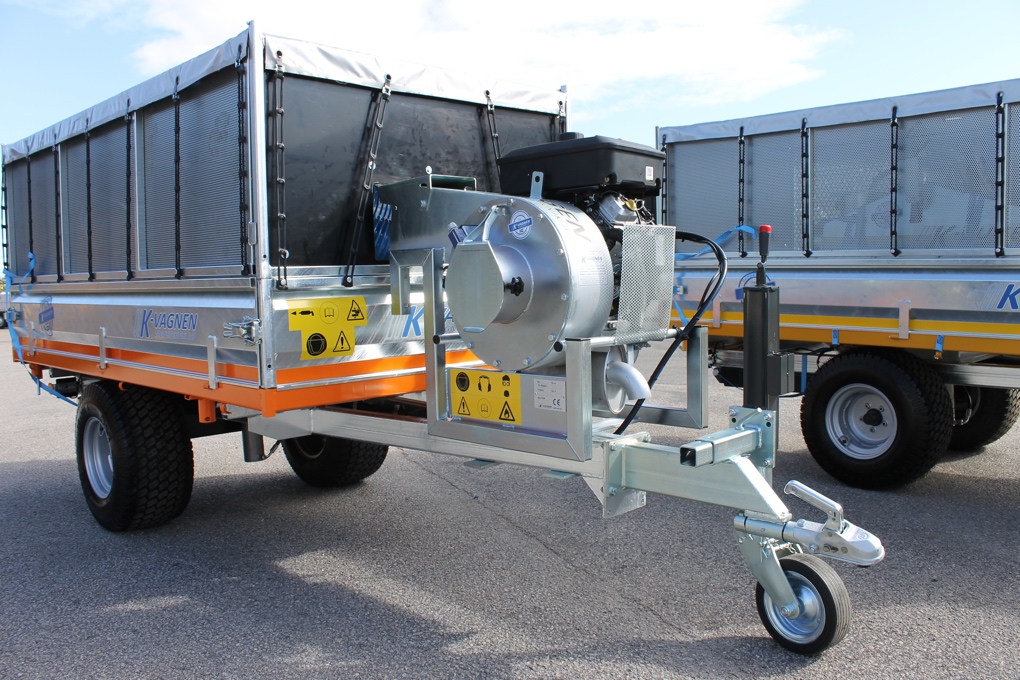

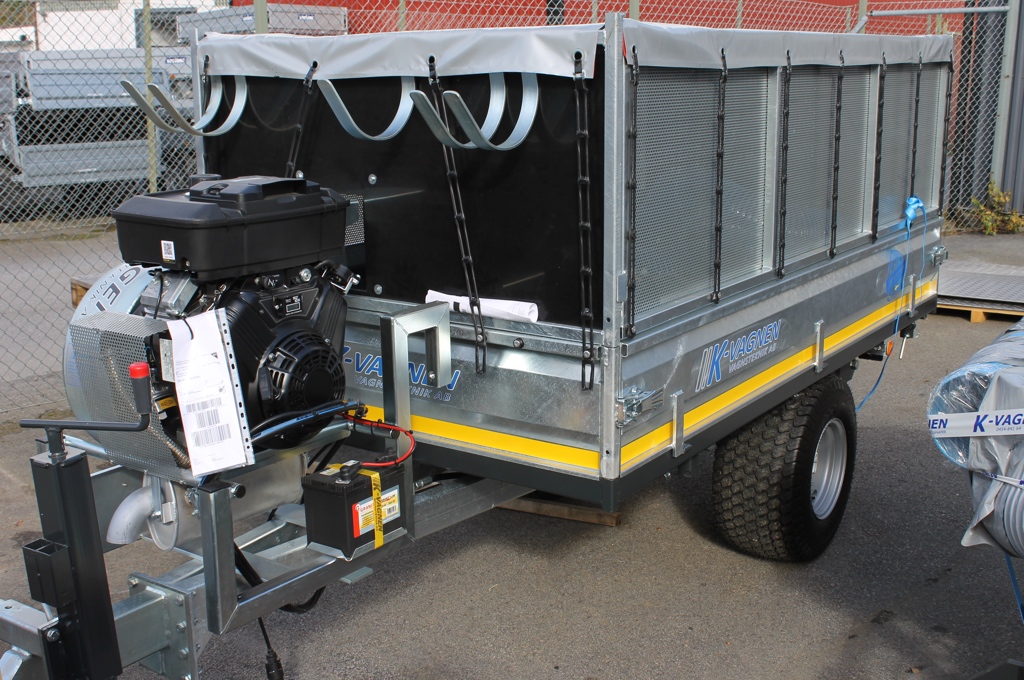

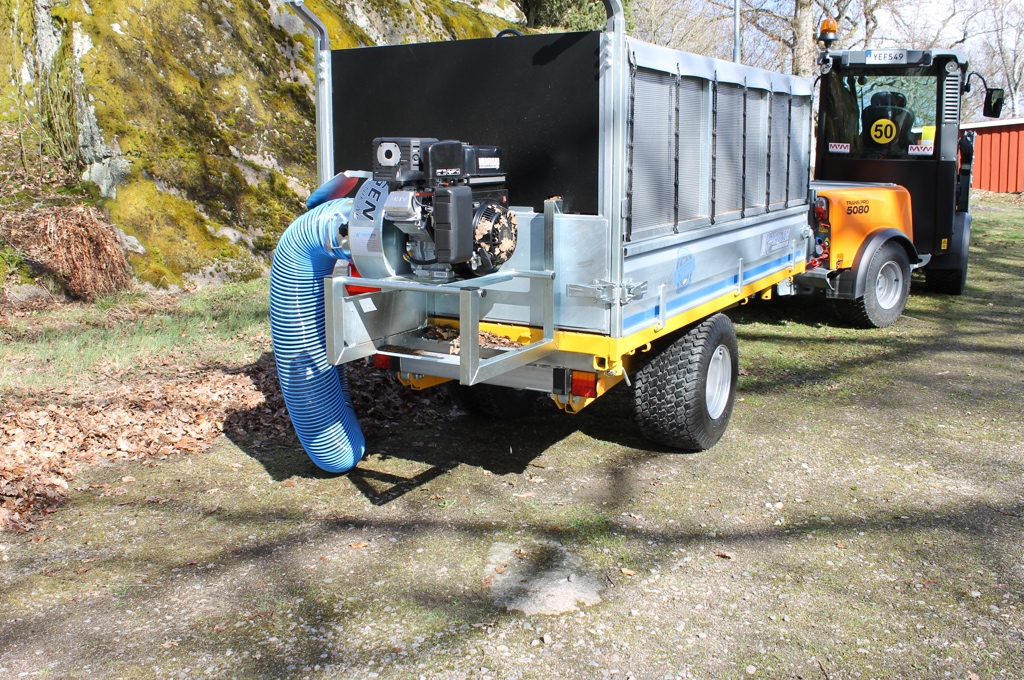

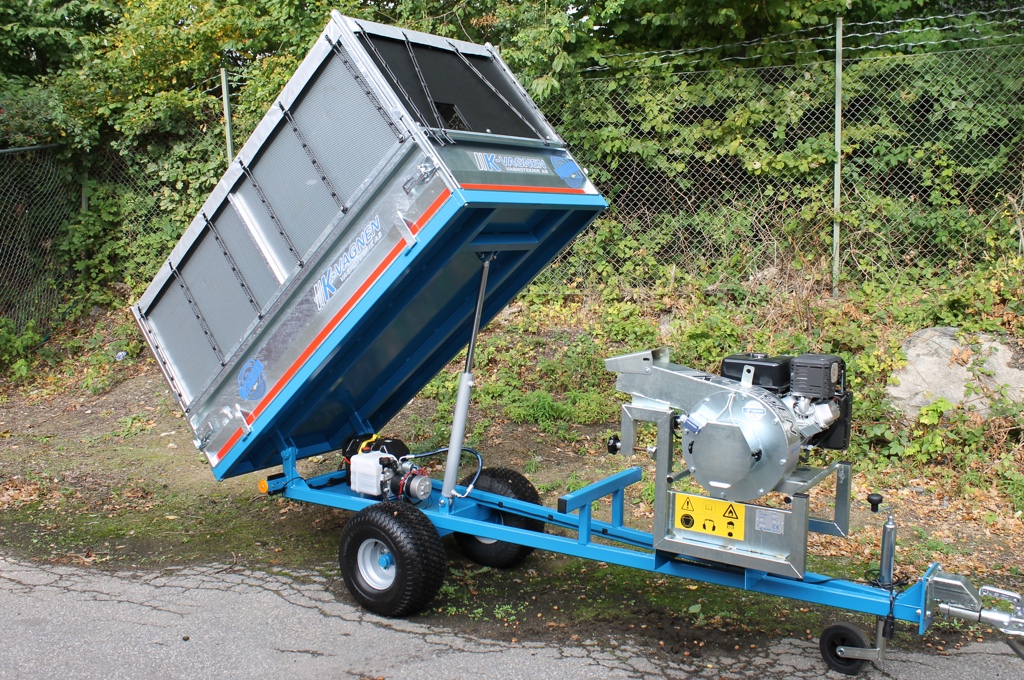

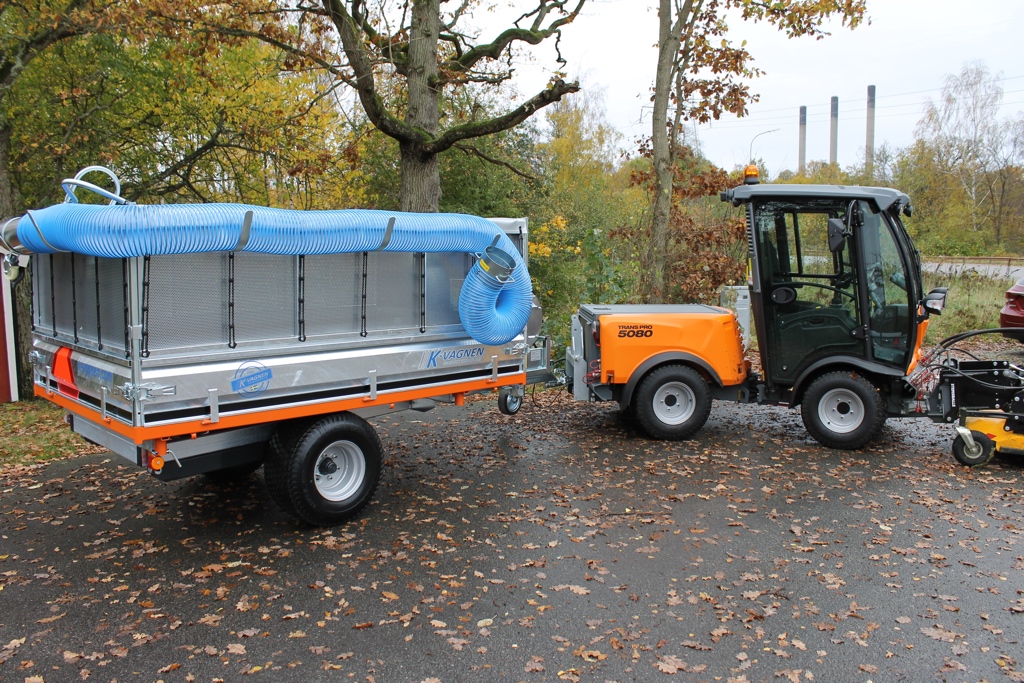

Leafloading can be handled in various ways, but our main solution for this is based on our 3-Way premium and 3-Way premium High tipping wagons. On this platform, we have constructed an advanced solution with meshwalls and topcovered trailers. On these, special made Hardox rotor wheels are mounted which is powered by Briggs & Stratton VanGuard engines. Rotor / engine unit can be mounted both in front and rear based on the customers preferences.
We have a good supply of spare parts if needed which ensures good functionality for many years to come.
Standard equipped with:
| LeafLoader | 16T3 | 18T3 | 20T3 | 30T3 | 40T3 |
|---|---|---|---|---|---|
| Total length | 3600 mm | 3600 mm | 3800 mm | 4200 mm | 4200 mm |
| Total width | 1310 mm | 1310 mm | 1570 mm | 1570 mm | 1570 mm |
| Bed dimensions | 2500*1250*300 mm | 2500*1250*300 mm | 2500*1500*300 mm | 3000*1500*300 mm | 3000*1500*300 mm |
| Volume, M3 | 1,0 | 1,0 | 1,125 | 1,35 | 1,35 |
| Tipping angle | 50 | 50 | 50 | 50 | 50 |
| Net Weight kg | 500 | 500 | 550 | 600 | 800 |
| Max Load | 1.600 | 1.800 | 2.200 | 3.000 | 4.000 |
| Total Weight | 2.100 | 2.300 | 2.750 | 3.600 | 4.800 |
| Wheel | 26 x 12 x 12 - 8pr | 26 x 12 x 12 - 8pr | 26 x 12 x 12 - 8pr | 400/60 - 15,5 - 14pr | 400/60 - 15,5 - 14pr |
| HighTipping Version Code | 16HT3 | 18HT3 | 20HT3 | 30HT3 | 40HT3 |
